USW Welding Machine

Ultrasonic Welding & Staking

What is Ultrasonic Welding?

Ultrasonic welding is the joining or reforming of thermoplastics. Heat generated using high-frequency sound waves and pressure bonds materials together. Mechanical motion, along with applied force, creates frictional heat. Therefore this allows melting of material and forms a bond. Ultrasonic technology requires less energy than conventional welding and offers many advantages.

Advantages

Ultrasonic welding and staking offers many advantages in various industries such as electrical, computer, automotive, medical and packing. These advantages offer process reliability and repeatability, performance speed and flexibility, energy, material, and labor savings.

Reliability and Repeatability

The ultrasonic welding process is primarily automated and only requires the welder to pull a lever or push a button to produce the ultrasonic weld. Since there are no visible seams which could detract the finished product, these welds are visually appealing.  Proper staking design strengthens the product and appearance with minimal or no flash. Ideally, this welding process creates reliable bonds without introducing any impurities or distortion to the components being welded. In other words, this repeatable process provides consistent results.

Performance speed and Flexibly

Despite higher initial investment, ultrasonic welding offers high processing speed and as a result, makes it very appealing for mass production. Ultrasonic welding typically has short cycle times of less than one second that can be achieved depending on the required welds.

Energy, Material, and Labor Savings

Ultrasonic welding requires no connective bolts or soldering materials to bind multiple pieces together. This saves on manufacturing and production costs. Ultrasonic staking eliminates consumable materials such as screws, rivets, bolts, nails or adhesives and provides the ability to perform multiple stakes with one horn.

Auto Film Cut-Off

  • Available on all 2000 series wrappers with powered pre-stretch (20″ film carriage only)
  • Automatically cuts the film at the end of wrap cycle
  • Decrease wrap time by 20 seconds per load
  • ROI at 25 loads per day = $520.00 annual savings ( 25 loads per day x $.083 per load x 250 working days per year)



Laser Marking Systems

Laser Marking Systems

Laser marking systems

Laser marking offers a broad range of processing abilities and takes place completely without contacting the part. These high-precision laser marking systems use a beam of light energy to create a mark on a part that can be of an image, text, logos, barcodes, UID codes, or QR codes. Various materials may be laser marked or labeled such as plastics, acrylics, foam, wood, leather, glass, rubber, cloth or metals. This fast, clean technology offers many advantages unlike traditional part marking systems. It eliminates the need to purchase and replace ink cartridges or ribbons as well as the use of tool bits which come in contact of your surfaces and wear out.

FAST
EASY
VERSATILE
ARTWORK
DATA CODES

Fast

The time it takes to mark a part using a laser is incredible! Marking can take place in less than a second even while the marked part is in motion. Most applications have a stationary part or set of parts to be marked placed in front of the laser head, it is possible to mark moving parts on the fly.

Easy

No ink reservoirs to fill, no labels or ribbons to replace, and no machine cleanup due to overspray or spills. Just turn on the power and you are ready to start marking parts.

Need to make a change to your marking parameters? No problem, the PC-based software makes program setup and changes straight-forward and simple to do. Just make your changes, save the file to the laser head and you are ready to go.

Versatile

Marking can be done on a wide range and variety of materials. The most common materials marked are plastics and metals, laser marking can also be done on wood and glass

Artwork

Part marking does not consist of just text and barcodes. You can also use laser marking as a way to add flair to your product. Images and designs can be incorporated into your marking file. Not only that, but based on your material and laser settings, you can alter the color of the marks, too!

Data Codes

One of the most valuable features of laser making is the ability to add permanent data codes to your products. This provides reliable traceability throughout the manufacturing process and any data acquisition that you wish to accomplish. Since the mark is permanent, there is no risk of a label falling off or smeared ink. Once a part has been marked, it's forever.

Common data codes consist of 1D barcodes as well as 2D barcodes such as Data Matrix and QR codes.

Berran has experience with integration of laser systems from the following companies; Keyence, Datalogic, and Tykma Electrox.

For information on the custom machinery products, please contact Berran today at (330) 253-5800.

CLICK HERE TO INQUIRE ONLINE

Stainless Steel Construction

Stainless Steel Machinery

Berran offers several optional machine variants within their Eagle line of packaging equipment that use of stainless steel in their construction. Stainless steel is easily cleaned and sterilized to prevent bacterial contamination of food products, and is very durable. It is commonly used for industrial equipment when durability and cleanability are important.

The Eagle T210SS, for instance, is a carton sealer with a stainless steel frame which is suitable for use in food processing and packaging facilities. The Eagle T210SS is ideal for use with wide cartons and features top and bottom drive belts and tape heads for smooth carton sealing operation. For more information on the Eagle T210SS, please click the link below or contact us today by using our online contact form.

Eagle T210-SS product information

Contact Us

For more information, please give one of our representatives a call at (330) 253-5800 or...
Random Size Carton Sealer

Random Size Carton Sealer

If you have a packing line with random or non-conforming carton sizes, Berran has the machinery for you. Sealing cartons of varying heights and widths on a conveyor system can pose a challenge, but Eagle packaging equipment has you covered.

Berran offers several options on a random size carton sealer for sealing cartons of varying sizes on the same line. Eagle machines such as the T400R, T550RL, and T600RA are capable of self-adjusting to the currently loaded carton size. Thereby reducing downtime due to machine adjustment and reconfiguration.


Eagle T400R

Eagle T400R Carton Sealer

  • Top and Side Drive Belts
  • Upper and Lower Tape Heads
  • Dual Mast Construction

View More Detail

Eagle T550RL

Eagle T550RL Carton Sealer

  • Top and Bottom Belt Drives
  • Upper and Lower Tape Heads
  • Easy-Change Lower Tape Head

View More Detail

Eagle T600RA

Eagle T600RA Carton Sealer

  • Fully Automatic Operation
  • Top and Side Drive Belts
  • Upper and Lower Tape Heads

View More Detail

Oversized Loads Wrapping

Oversized Loads Wrapping

oversized loads wrappingEagle extended base stretch wrappers are designed to handle oversized loads wrapping such as furniture, cabinets, large foam pieces, display signs, etc... Even though the extended base stretch wrappers are designed for larger than usual loads, they can handle normal loads, too. The extended base models feature all the same functionality as our standard base models.

Extended Frame Base
Oversized 78.5" Turnable
Up to 170" Load Diameter
Up to 250% Film Pre-Stretch
Standard Operational Features

The Eagle extended base stretch wrappers can handle skids/loads of up to 170" in diagonal measurement with its 78.5" diameter turntable. Additionally, they feature a powered pre-stretch film carriage which applies up to 250% of pre-stretch to the film prior to application.


Eagle 2000EB



The Eagle 2000EB stretch wrapper comes equipped with an extended base as a standard feature. For more information on the Eagle 2000EB, click the link below.

Eagle 2000EB

Integrated Weight Scale

Integrated Weight Scale

Nearly all Eagle stretch wrappers are capable of having an optional integrated weight scale system installed. The stretch wrapper scale system makes it possible to obtain load weight at the same time that load wrapping takes places. Thereby reducing processing time and increasing productivity.

Real-Time Weight Monitoring
Load Label Generation
Accurate Shipping Weight
Decrease Processing Time
Increased Productivity
integrated weight scale load cell

At the heart of the system are the load cells. Located at multiple locations under the turntable and mast base, the load cells continuously collect weight data samples. The weight data is then averaged out with help from the load cell junction panel. The weight data is then transmitted to the display panel where it can be easily read by the machine operator.

Zebra printer

The panel can be connected to a variety of label printers via the RS232 serial connection. Any printer that supports ZPL script can be used to print the load label data generated by the panel.

By attaching a load label to your wrapped skid(s), carrier weight errors can be eliminated. Any additional costs or fees that may occur due to differences in estimated versus actual load weights can be reduced.


Stretch wrappers with integrated weight scale

While the weight scale system can be integrated into nearly any Eagle stretch wrapper, there are several stretch wrapper models that come with an integrated scale system built-in from the factory. For more information, take a look at the Eagle 2000BWS product link below

Eagle 2000BWS Details

Eagle 2000BWS

Distributorship Opportunities

New distributorship opportunities are available through Berran Industrial Group. By partnering with Berran, your company can increase its line of available products.  With the growing needs of your customers we have machine solutions to fit every need. For this reason, we stock machines, parts, and supplies locally within our building located in Akron, Ohio. As a result we keep these items in stock. We can provide rapid order fulfillment and turnaround times that will ensure your customers experience with minimal to no downtime.

Berran also has a custom machinery division which can support any specialized machine modification requests. No matter what the customer needs may be, we can fulfill them. For instance, maybe you need to add a servo-driven conveyor system, laser marking system, or barcode data capture and logging. In other words, Berran has the capability and know-how to get the job done right.

Need custom HMI or PLC programming? Either way, we can do that, too. Custom branding and assistance with marketing materials is just one way we assist our distributors in developing their presence in the marketplace. Additionally our in-house graphic design and programmers are available to help you make an impact with potential customers.

After over 37 years of experience, Berran has built a legacy of providing cost-efficient solutions to its clients. Contact us today to see what we can do for you!

For more information on how to become a distributor, please use our online form or give us a call at (330) 253-5800.

Berran Laser Marking & Engraving

Laser Marking & Engraving

Assembly lines and automation have been one of the greatest modernizations of the 20th century. With the labor pressure from foreign competitors, every manufacturing operation must look to automation to protect the future. Current marking methods are often labor-intensive or subject to mechanical wear. The most important fact a purchaser should be aware of when building an automated laser marking system is not the laser itself. Above all, it’s about the material handling, safety, quick changeover, quality control, and user-friendliness. As a result, there are many high-quality laser marking units in the marketplace that can fit a customer’s specific application.

Experience

Berran Industrial Group, Inc. has multiple years experiences with numerous brands. In other words, they can find the most appropriate laser. They consider all  applications including engineering factors. Berran stands out from the others in their 35+ years of special machine building. Their experience is not only limited to laser marking and engraving. Their engineers have designed custom industrial laser markers for various industries across the country, from Chicago, Illinois, and Detroit, Michigan, to Cleveland, Ohio. Especially in sectors such as automotive, aerospace, construction, hardware, food processing, medical, golf, and much more. They build high-quality standard enclosures for manual load laser markers. As well as optional automated laser markers. Barcode readers, cameras, and data acquisition can be utilized also.

Their 35+ years of extensive machine builds for the automotive industry gives them an extremely powerful knowledge base of zero tolerance quality demands for production, which they apply to all their custom industrial laser markers. Berran fully understands and actively supports our customers after the sale. Our engineers are available to support each customer, often using a free, direct, online connection to their machines for immediate diagnostics and support help.

Design

Berran Industrial Group, Inc. designs and builds robotic laser marker machinery. Specifically designed and manufactured per customer requirements, laser markers can be equipped with vision inspection. On one hand, Berran offers laser marker vision inspection systems for the complete integration of marking, reading, and verifying each part of any process. For small desktop jobs, laser marker enclosures are the perfect solutionLaser markers with vision inspection systems can inspect product quality in real-time and integrated into assembly lines. On the other hand, they can programmed to feed customers production and data acquisition programs.

Rather a special custom machine for a stamping plant in Cleveland or a laser marker for a medical supply manufacturer in Detroit, Berran offers solutions. Additionally they’re experienced with ultrasonic welders and secondary operations such as; assembly, punching, leak testing, packaging and more. As a custom machine builder and systems integrator, Berran Industrial Group, Inc. strives to create a relationship with each client. In summary, Berran can do it all.

Industries

Berran’s machines are very popular in the automotive industry. They are a direct machine supplier to a number of the largest automotive manufacturers in the world. A substantial number of cars on the road have parts processed with Berran’s machinery. Robotic fed laser markers use a robotic arm with the necessary range to do an unlimited number of tasks such as involving 3D matrix codes, logos, barcodes and more. With robotics involved in any sector; efficiency, accuracy, and production can be drastically increased. Automated laser markers and equipment are necessary to progress with the demands of any industry. Including the use of bar codes, characters, and 2D bar codes for tracking or labeling. Barcode laser markers are ideal for directly marking parts.

Whatever challenge an industry faces, robotics can be the solution. Any industry can count on Berran for their automated laser markers and equipment. Vast array of industries use laser marking and engraving. For example, medical markings on instruments or precision engraving of golf clubs. Berran Industrial Group, Inc. is the only company to trust for industrial laser markers.

Contact Berran Industrial Group, Inc.

In Summary, whether your in the market for a servo laser marker for smaller projects or a robotic laser marker for rapid and precise production, this laser marker integrator can create a custom laser marker to fit any application. Businesses everywhere can rely on decades of experience at Berran Industrial Group, Inc. They provide comprehensive laser marking and engraving solutions.

Contact Us

Custom Machinery

Programmable Logic Controller
PLC
Human Machine Interface
HMI
Barcode Scanner
Data Aquisition
Laser Engraver
Laser Marking
Robotic Arm
Robot Cells

Custom Machinery

Throughout the years, Berran has designed, built, and installed various custom machinery for numerous industry types. We have a diverse customer base including automotive, toy, window, wood and steel, walls, food processing, foundry, glass, garment hangers, steel rubber, filter, medical, golf, and other unique industries. We are confident our machines take a backseat to no one. Our technology base allows us to be competitive with on-demand or full-automation systems.

Our experienced engineering staff not only design our machines, but they help build them. This hands-on experience gives our staff an advantage over our competition. Our engineers make three-dimensional designs in the most up to date version of Solidworks. We can provide our customers with 3D solid model eDrawings for review, or we may translate the design into any of a number of other customer-specified formats on a case-by-case basis. We are well staffed for both mechanical and high-level electrical controls.

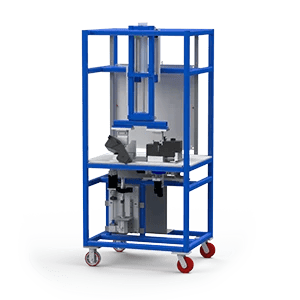

Below is an example of just one of our many builds. This project was designed, engineered, fabricated, assembled, programmed, debugged, and test-run in-house by Berran employees prior to delivery at the customer's location.

Part Processing Solutions

Custom Machine Design
Custom Machine Design
